AIR COMPRESSOR  UNIV UDS185S
AIR COMPRESSOR  UNIV UDS185S
Hover to Zoom

Last Updated
22 Sep 2020
Country Origin
China
Minimum Order
1 UNIT

Specification of



AIR COMPRESSOR  UNIV UDS185S

Spesification :

TypeUDS185S
Model : ISUZU 4JB1 -C
Air Outlet pcs : 3
Cooling Starting Method : Electric Start
Displacement : 2.771 L
Engine Water Cooled:  4-stroke
Engine Speed : 2950 Rpm/min
Free Air Delivery : 5.2 m³/min
Fuel Consumption : 8 L/h
Fuel Tank Capacity L: 80
Rated Operating Pressure : <6,5 kg/cm²
Dimension (mm) : 3312 x 1496 x 1720
Weight (kg): 1100

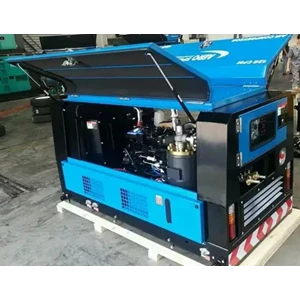

Air Compressor UNIV UDS185S is a machine or mechanical device that serves to increase pressure or get gas or air fluid. Air compressor engines generally use electric motors, gasoline engines, or diesel engines as their driving force. In detail the advantages of the UDS185S Univ Compressor are the GULL-WING doors designed to facilitate interior inspection and maintenance, the Cartridge Filter separator makes it easy to replace, the Automatic-Relief Valve piston has no diaphragm, the pressure regulator has become smaller and does not have the diaphragm needed so it is not necessary to replace the diaphragm on this water compressor, the oil pipe connection has been designed as an O-Ring seat type to eliminate oil leaks, the radiator and oil cooler are combined in the form of one piece panels so they can provide more, smooth radiator and oil coolers and easy on the Air Compressor

Untuk keterangan lebih lanjut, silahkan download PDF ini :
