Specification of AIR COMPRESSOR AIRMAN PDS 750S

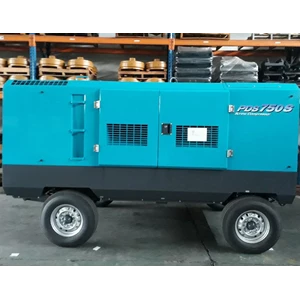

AIRMAN DIESEL PORTABLE SCREW AIR COMPRESSOR PDS750S-4B1 ( 750 CFM - 7.1 BAR )
Information :
Telp Office | : 021 - 25684894 ( PT. Getar Gemilang Sakti ) |
Email | : getarsakti19@gmail.com |
Tlp Hp | : 0813 18900569 (Jun) |
Web | : www.getarsakti.com / www.alatkontruksi.com |
Specification :
Type | : Rotary twin screw, Single stage |
Free Air Delivery | : 750 cfm ( 21.2 m3/ min) |
Engine | : Hino JO8C-UT |
Pressure | : 102 psi ( 7.1 bar) |
Air outlet | : 2 " - 1 pcs; 3/ 4 " - 2 pcs |
Jumlah silinder | : 6 buah |
Rate Output | : 2100 rpm |
Kapasitas Oli | : 23 L |
Dimensi | : 3650 x 1685 x 2070 mm
|
Superior Serviceability
· Air Compressor Airman Pds 750 S is basically the same as the others which is a tool to convert electricity using the help of an electric motor, diesel or gasoline engine into potential energy stored in compressed air that is compressed air
·
Newly designed GULL-WING door - Easiest access for
interior inspection and maintenance.
·
Filter Cartridge type separator allows the easiest
replacement.
·
Main Components - Maintenance Free
·
The new type of Automatic-Relief Valve pistons do not
have a diaphragm.
·
So the diaphragm service is no longer needed.
·
The Pressure Adjusting Regulator has become smaller
and does not have the necessary diaphragm
·
Smooth and Easy Cleaning
·
Oil pipe joints have been designed as O-Ring seat
types to eliminate oil leaks.
·
Radiator and oil cooler are combined in the form of
one piece panel so they can provide more
·
Smooth and easy radiator oil cooler and cooler on this
Air Compressor and Parts.
