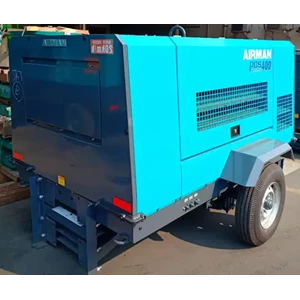

Specification of AIR COMPRESSOR AIRMAN PDS 400S
AIR COMPRESSOR AIRMAN PDS 400S / SC-6B5 (Serries Portabel / Trailler Model)
Information :
| Telp Office | : 021 - 25684894 ( PT. Getar Gemilang Sakti ) |
| Email | : getarsakti19@gmail.com |
| Tlp Hp | : 0813 18900569 (Jun) |
| Web | : www.getarsakti.com / www.alatkontruksi.com
|
Spesification :
| COMPRESSOR | |
| Type | : Rotary Twin Screw, Single Stage, Oil Cooled |
| Free Air Delivery | : 11.3 m3/min ( 400 CFM ) |
| Working Pressure | : 0.70 MPa ( 7.1 kgf/cm2 ) ( 101 psi ) |
| Unloader | : Suction Port Closing in Connection With stepless speed regulator |
| Lublication System | : Forced Lubrication by compressed air |
| Driving System | : Direct Coupling with rubber |
| Oil Cooling | : Air cooled |
| Air Cleaner | : Dry Paper filter type |
| DIESEL ENGINE | |
| Model | : KUBOTA V3800DI-TIE2B-COHE1 |
| Type | : Water cooled, 4 cycle, direct injection, Turbo charged, intercooled |
| No. of Cylinders | : 4` |
| Cyl. bore x stroke | : 100mm x 120mm |
| Total Displacement | : 3,769 Liters |
| Compression Ratio | : 19.0 : 1 |
| Rated Output | : 72.5 kW / 2600 min1 |
| Injection Pump | : BOSCH PFR4M |
| Governor | : Electronic Governor |
| Alternator | : DC 12 V, 960W |
| Starting Motor | : DC 12V , 4.8 Kw |
| Battery | : 130F51 x 1 |
| Air Cleaner | : Dry Type |
| Fuel Tank Capacity | : 178 Liters |
| Engine Oil Capacity ( Including oil Cooler ) | : 13 Liters |
| Coolant Capacity ( Including oil cooler ) | : 15.6 Liters |
| Compressors Oil Capacity ( including receiver tank & oil cooler ) | : 40 liters |
| OIL SEPARATOR - RECEIVER TANK |
| Type | : Vertical and Cylindrical welded vessel |
| Shell dia | : 350 mm |
| Shell length | : 774 mm |
| Capacity | : 0.0766 m3 |
| Max. Working Pressure | : 1.0 Mpa |
| Air Outlet Valve | : 50A x 1, 20A x 2 |
| WEIGHT | |
| Dry Weight | : Standard- 1.740 kg / After Cooler- 1.780 Kg |
| Operating Weight | : Standard- 1.940 / After Cooler- 1.980 Kg
|
Superior Serviceability
·
Newly designed
GULL-WING door - Easiest access for interior inspection and maintenance.
·
Filter Cartridge type separator allows the easiest
replacement.
·
Main Components - Maintenance Free
·
The new type of Automatic-Relief Valve pistons do not
have a diaphragm.
·
So the diaphragm service is no longer needed.
·
The Pressure Adjusting Regulator has become smaller
and does not have the necessary diaphragm
·
Smooth and Easy Cleaning
·
Oil pipe joints have been designed as O-Ring seat
types to eliminate oil leaks.
·
Radiator and oil cooler are combined in the form of
one piece panel so they can provide more
·
Smooth and easy radiator oil cooler and cooler on this
Air Compressor and Parts.
